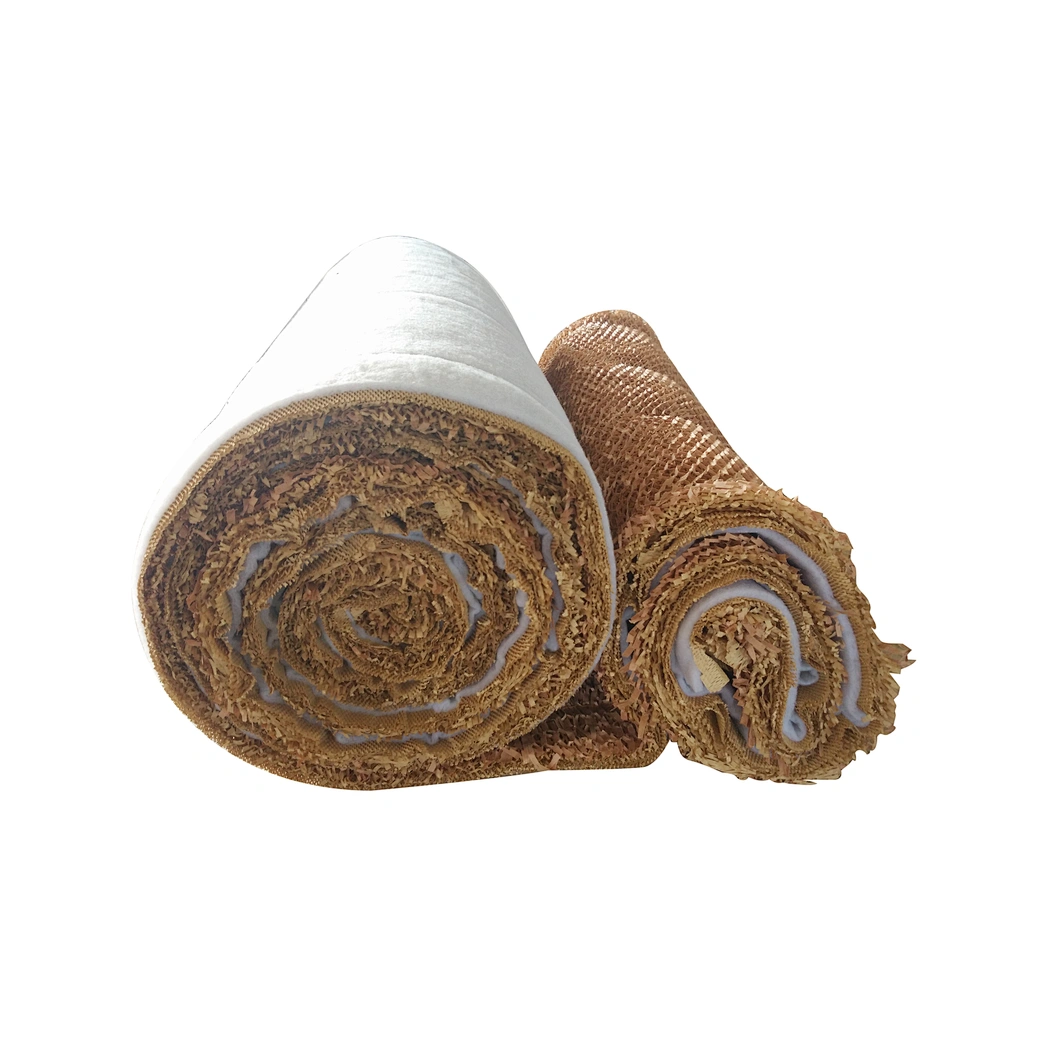

Multi-layer paint filter paper

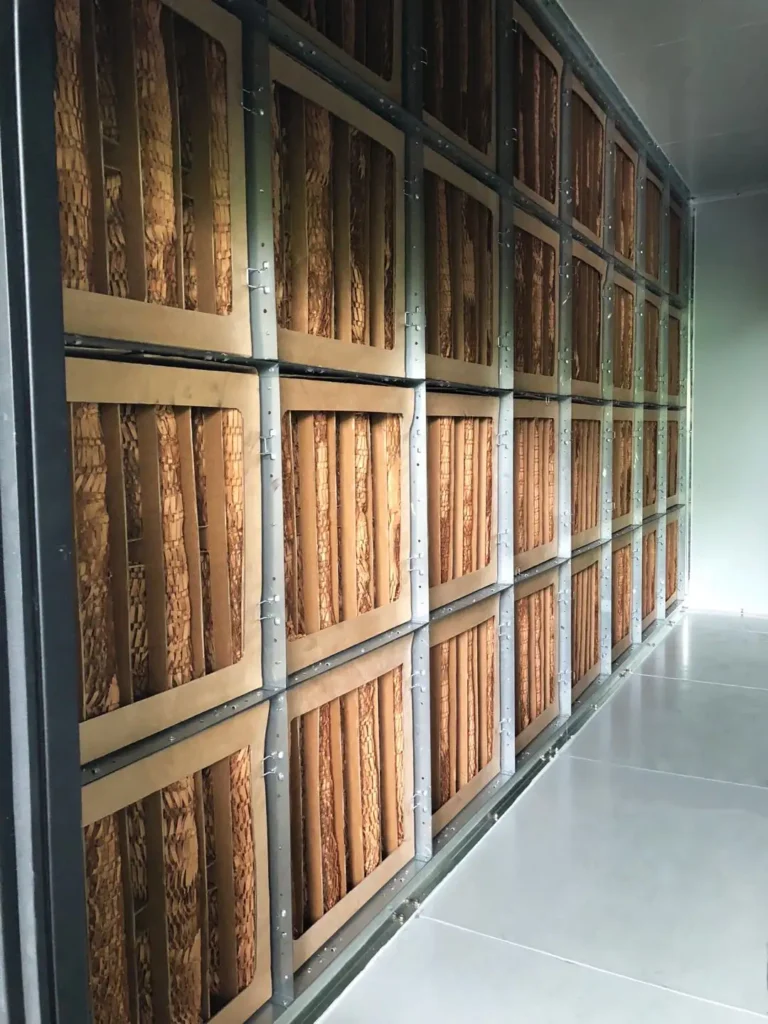

Using the principle of the influence of air pressure on the airflow: when the paint in the spray room or the paint room flows to the mesh filter paper under the action of air pressure, the filter paper will be affected by the air pressure, blocking the flow of the paint fog, so as to effectively absorb the paint and dust in the air.
Product Description
Application Description
Product Description
Features:
· high filtration efficiency, fire resistance and anti-static;
· it has the comprehensive characteristics of less resistance loss, avoiding secondary pollution, simple replacement, clean working site, and good economic performance;
· its performance index is basically equal to imported JISEITAI and KAISHALTD
Standard:
- total six（6）layers of progressively fine baffled mesh expanded paper.
- total seven（7）layers，Six（6）layers of progressively fine baffled mesh expanded paper backed with one（1）layer of polyester fabric.
- total ten （10）layers of progressively fine baffled mesh expanded paper.
- total eleven（11）layers，ten（10）layers of progressively fine baffled mesh expanded paper backed with one（1）layer of polyester fabric.
Standard size： 500x500mm/roll，1x1m/roll
Data Sheet:
| Model | 10 layers |
| Model size | 500X500X30(MM) |
| Tested air flow | ＜20pa |
| Painting mist particle filtration rate | 90% |
| Painting mist particle trapping | 4.6~6 kg/m2 |
