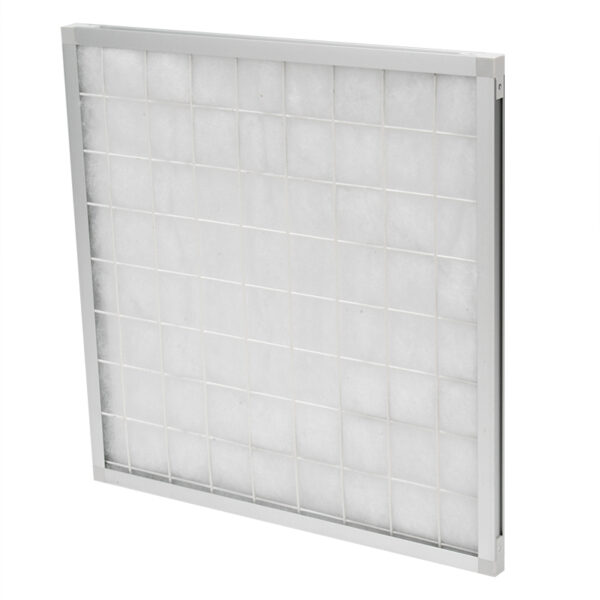

Plank Pre filter

Product usage：

Mainly used in commercial and industrial ventilation systems, air conditioning systems pre-filtration.

Features:

· the filter material is made of high-quality polyester synthetic fiber with long service life, fluffy and denser fiber structure, the large air volume and high dust capacity, effectively extending the service life of the middle effect filter at the back end;

· lightweight plate structure with low initial resistance and strong flame retardant;

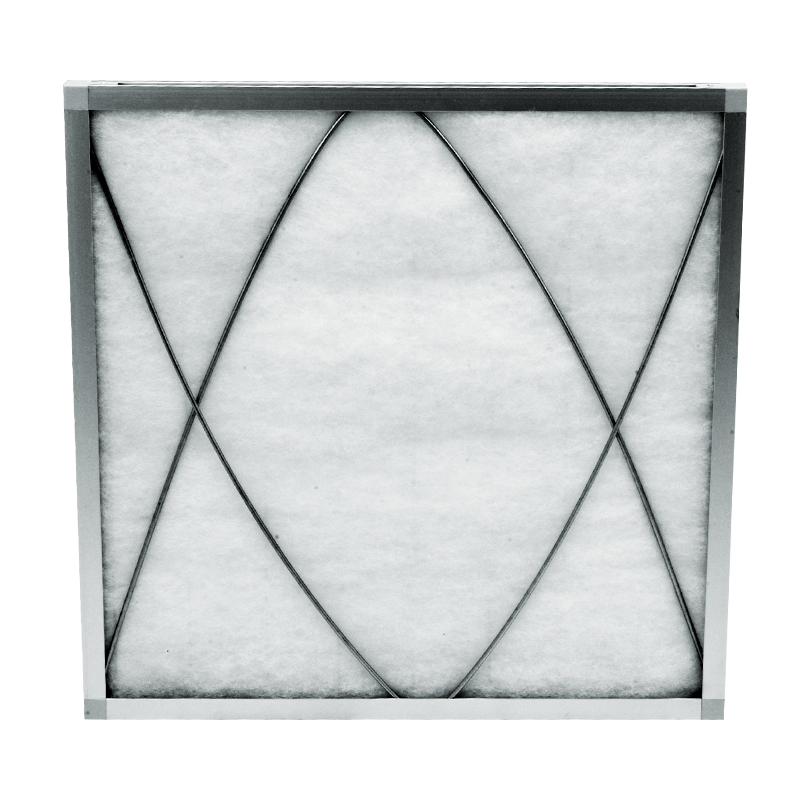

· the filter mesh can be made of galvanized mesh, filter mesh, stainless steel mesh, and plastic-sprayed mesh to enhance the filter strength;

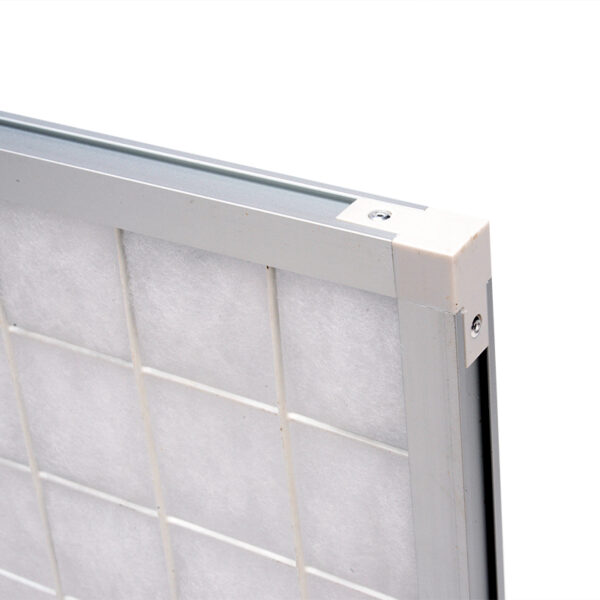

· aluminum frame, galvanized frame, and stainless steel frame are optional for the outer frame to further enhance the hardness of the filter, which can avoid deformation, fracture, and distortion in the normal working environment.



 Specification:

Model	Length(m)	Width(m)	Thickness(mm)	Rated Air Velocity(m/s)	Initial resistance(Pa)	Rated Air Flow(m3/h)
PB10	595	595	10	1.0	≤50	1200
PB15	595	595	15	1.0	≤50	1200
PB21	595	595	21	1.0	≤50	1200
PB25	595	595	25	1.0	≤50	1200

Note: other specifications can be customized according to requirements.



 Technical datasheet ：

Filtering class	G2、G3、G4(EN779)、EU2、EU3、EU4(EUROVENT)
Efficiency	75%、85%、95%(ASHRAE52.1-1992)
Temperature resistance	Polyester fiber ≤100°C, glass fiber ≤300°C.
Filter object	≥ 5 μ m coarse dust and foreign matter
Moisture resistance (relative humidity)	≤99%RH
Temperature-instant	Polyester fiber ≤ 120 ℃, glass fiber ≤ 350 ℃

The filter material is made of high-quality polyester synthetic fiber with a long service life, fluffy, and denser fiber structure, providing a large air volume and high dust capacity. This effectively extends the service life of the middle effect filter at the back end. The synthetic fiber plank pre-filter ensures efficient pre-filtering, enhancing the overall filtration process.

The lightweight plate structure exhibits low initial resistance and strong flame retardant properties, ensuring optimal performance in various environments. Additionally, the pre-filter max pre-filter is integrated to further enhance the initial filtration stage, contributing to an efficient and durable filtration system.

For added strength, the filter mesh is available in various options, including galvanized mesh, filter mesh, stainless steel mesh, and plastic-sprayed mesh. This diverse range of materials enhances the overall filter strength and resilience.

Choose from optional frames such as aluminum frame, galvanized frame, and stainless steel frame for the outer frame. This customization allows for further enhancement of the filter’s hardness, preventing deformation, fracture, and distortion in the normal working environment. The air filter synthetic fiber plank pre ensures a comprehensive and reliable filtration solution for extended equipment longevity.
