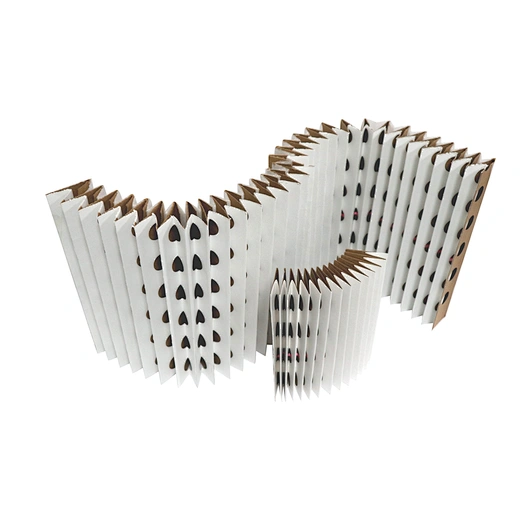

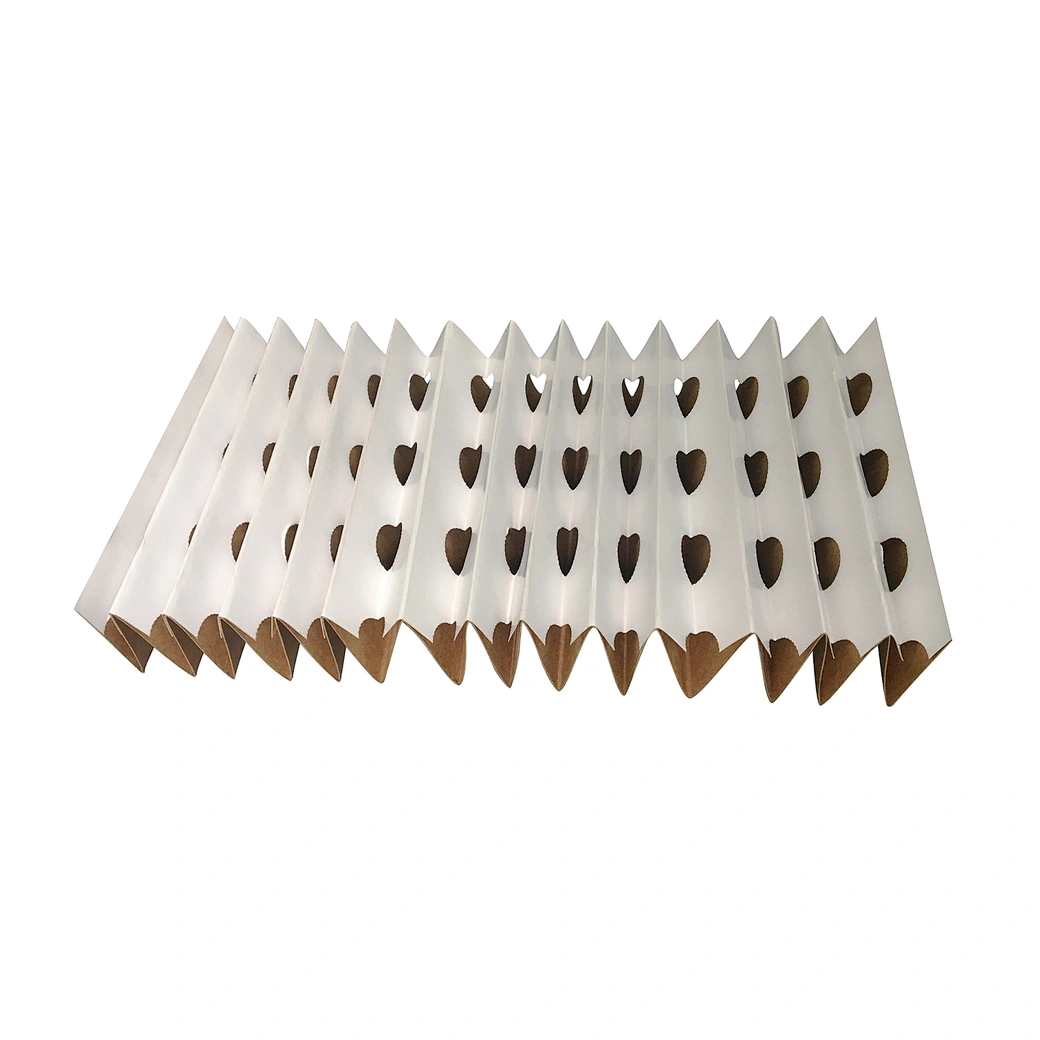

Product Description
Features:
· v-shaped groove design, using the centrifugal principle to ensure better filtering of paint;
· the filter paper can be filtered horizontally or vertically;
· even if the paint capacity of filter paper is close to saturation, it can still ensure a certain degree of ventilation strength;
· the filter paper adopts imported environment-friendly hard kraft paper with strong hardness (230g/m2);
· fully automated production ensures the quality of filter paper.
Specifications:
Model | Length(m) | Width(m) | Thickness(mm) | Rated Air Velocity (m/s) | Initial resistance (Pa) |
V60 | 10 | 0.6 | 60 | 0.5-1 | ≤50 |
V100 | 10 | 1 | 60 | 0.5-1 | ≤50 |
Note: other specifications can be customized according to requirements
Technical datasheet:
Stretch folding thickness | 60mm |
Flame retardant grade | K1(DIN 53438) |
Moisture resistance (relative humidity) | ≤80%RH |
Filter object | Paint particles and dust particles |
Aperture | 25mm |
Pitch-row | 20mm |
Temperature resistance | ≤100℃ |
Instantaneous temperature tolerance | ≤120℃ |
Average weight efficiency | ≥75%(ASHRAE52.1-1992) |
Adsorption capacity | 13kg/㎡ |
Final resistance | 150Pa |
